ECE R104 & US DOT-C2 Conspicuity Tape Standards for Commercial Trailers

Commercial trailers exceeding 6,000 kg GVWR require certified retro-reflective conspicuity tapes to ensure passive night visibility. While UN/ECE R104 applies across Europe and GCC countries, FMVSS 108 / DOT-C2 governs North American fleets.

1. ECE R104 vs. US DOT-C2 Standard Comparison

Specification	UN/ECE R104 (Europe / SASO / GCC)	US FMVSS 108 / DOT-C2 (North America)
Marking Stamp	Circular E-Mark (104R-00XXXX)	DOT-C2 stamped every 12 inches
Side Strip Color	White or Yellow (Amber)	Alternating Red / White
Rear Outline	Red or Yellow (Full/Partial Frame)	Red/White (Lower) & White (Top corners)
Min. Coverage	80% of total trailer length	50% cumulative side length

Export Tip: Global manufacturers like 3M and Avery Dennison produce dual-certified tapes carrying both ECE R104 Class C and DOT-C2 approval stamps on a single roll.

2. Extreme Thermal & Dust Resistance (SASO / UAE RTA)

For Middle Eastern desert routes (SASO 2913/2914 standards) and severe industrial washdown environments, tapes must satisfy:

• Thermal Limits: Pressure-sensitive acrylic adhesives resisting temperatures up to 80°C without edge-lifting.
• IP69K Washdown: Micro-prismatic layers sealed against 120 bar hot-water jet cleaning.
• UV Protection: Non-yellowing top films preventing delamination under direct solar exposure.

3. Recommended Certified Conspicuity Tapes

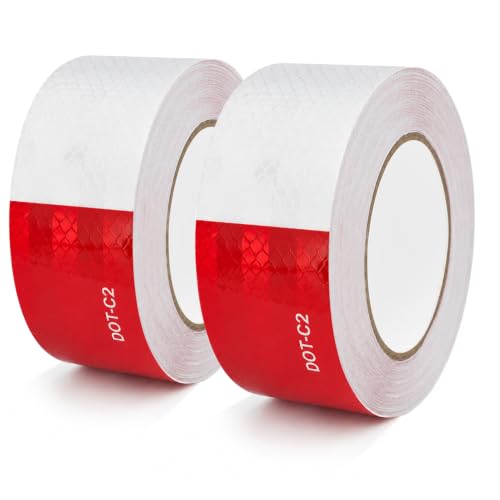

1. 3M Diamond Grade Conspicuity Marking Tape (Red/White – 2″ x 150 ft)

• Approval: Dual Certified ECE R104 Class C / US DOT-C2.
• Application: Rigid chassis sides, rear perimeters, and flat panels.
• Durability: 10-year field warranty, IP69K washdown resistant.
• [Check Price on Amazon] (Affiliate Link)

2. Avery Dennison V-6700 Series Yellow Contour Tape

• Approval: UN/ECE R104 Class C Approved.
• Application: Continuous side lines for rigid and curtain-sided trailers.
• Feature: Single-layer construction (no edge sealing needed).
• [Check Price on Amazon] (Affiliate Link)
